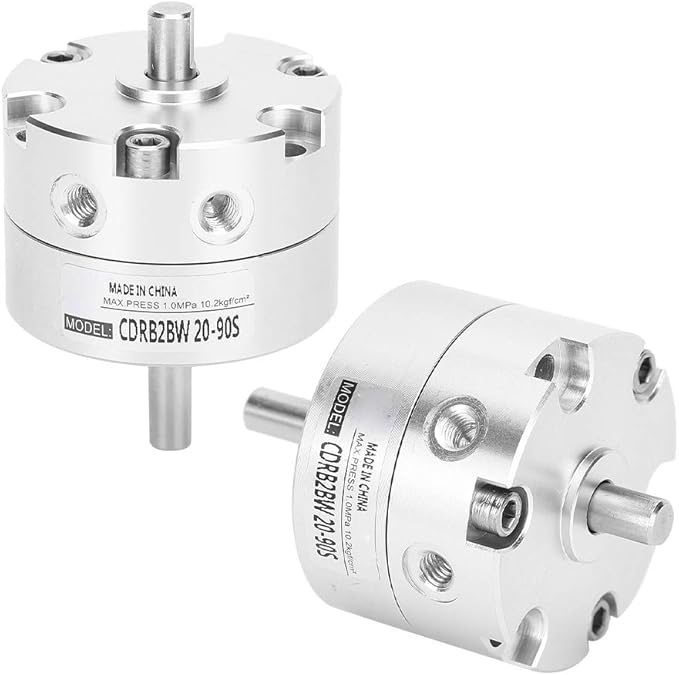

20mm Mini Rotary Actuator Cylinder Vane Type Pneumatic Cylinder Stainless Steel Pneumatic Actuator Swivel Air Cylinder Stainless Steel Cylinder Rotary Actuator

The 20mm Mini Rotary Actuator Cylinder is a compact and highly efficient component designed to provide precise rotary motion in pneumatic systems. This vane-type pneumatic cylinder is constructed from stainless steel and offers exceptional durability and performance in a variety of industrial and automation applications.

Design and Construction

• Vane Type: The actuator utilizes a vane-type design, which involves a rotating vane inside the cylinder that converts pneumatic pressure into rotary motion. This design ensures smooth and reliable operation, making it ideal for applications requiring precise rotational control.
• 20mm Diameter: With a compact 20mm diameter, this mini rotary actuator is well-suited for applications where space is limited but precise motion control is necessary. Its small size allows for integration into tight or constrained environments without sacrificing performance.
• Stainless Steel Construction: The cylinder is made from high-quality stainless steel, offering superior resistance to corrosion and wear. This material choice ensures long-lasting durability and reliability, even in harsh or demanding environments.

Performance Features

• Pneumatic Actuator: As a pneumatic actuator, this rotary cylinder operates using compressed air to generate rotary motion. It provides smooth and consistent performance, making it suitable for a range of pneumatic applications.
• Swivel Air Cylinder: The swivel feature allows the cylinder to rotate or pivot, providing flexibility in mounting and positioning. This feature enhances the actuator’s versatility, enabling it to be used in various orientations and configurations.
• Precision Control: The vane-type design and compact size ensure precise control over rotary motion, making it ideal for applications that require accurate positioning and movement.

Applications

The 20mm Mini Rotary Actuator Cylinder is suitable for a variety of applications, including:

• Automation Systems: Provides precise rotary motion for automation equipment, contributing to efficient and reliable operation.
• Robotics: Ideal for use in robotic arms and other robotic systems where compact size and accurate motion control are essential.
• Manufacturing: Used in manufacturing processes for tasks such as indexing, positioning, and turning components.
• Medical Devices: Its small size and durability make it suitable for medical devices requiring precise rotary motion in constrained spaces.

Advantages

• Compact Size: The 20mm diameter allows for easy integration into tight spaces while maintaining high performance.
• Durable Construction: Stainless steel construction provides resistance to corrosion and wear, ensuring long-term reliability.
• Versatile Application: The vane-type design and swivel feature enhance the actuator’s adaptability for various mounting and positioning needs.
• Precise Motion: Delivers smooth and accurate rotary motion, contributing to precise control in applications.

Conclusion

The 20mm Mini Rotary Actuator Cylinder, with its vane-type design and stainless steel construction, offers a compact and reliable solution for precise rotary motion in pneumatic systems. Its durable build, versatile features, and accurate performance make it an excellent choice for a wide range of applications, including automation, robotics, manufacturing, and medical devices.
